LCSAJ means A Linear Code Sequence And Jump, consisting of the following three items (conventionally identified by line numbers in a source code listing): the start of the linear sequence of executable statements, the end of the linear sequence, and the target line to which control flow is transferred at the end of the linear sequence.
LCSAJ testing is a test case design technique for a component in which test cases are designed to execute LCSAJs.
An LCSAJ is defined as unbroken linear sequence of statements:
(a) Which begins at either the start of the program or a point to which the control flow may jump,
(b) Which ends at either the end of the program or a point from which the control flow may jump?
(c) And the point to which a jump is made following the sequence.
LCSAJ coverage = I/L
Where: I = Number of LCSAJs exercised at least once.
L = Total number of LCSAJs.
LCSAJs depends on the topology of a module's design and not just its semantics, they do not map onto code structures such as branches and loops. LCSAJs are not easily identifiable from design documentation. They can only be identified once code has already been written. LCSAJs are consequently not easily comprehensible.
Definitions:
LCSAJ: A Linear Code Sequence And Jump, consisting of the following three items (conventionally identified by line numbers in a source code listing): the start of the linear sequence of executable statements, the end of the linear sequence, and the target line to which control flow is transferred at the end of the linear sequence.
LCSAJ coverage: The percentage of LCSAJs of a component which are exercised by a test case suite.
LCSAJ testing: A test case design technique for a component in which test cases are designed to execute LCSAJs.
Monday, September 22, 2008
Thursday, September 18, 2008
Traceability Matrix
Definition
A traceability matrix is a table that correlates any two base lined documents that require a many to many relationship to determine the completeness of the relationship. It is often used with high-level requirements (sometimes known as marketing requirements) and detailed requirements of the software product to the matching parts of high-level design, detailed design, test plan, and test cases.
Common usage is to take the identifier for each of the items of one document and place them in the left column. The identifiers for the other document are placed across the top row. When an item in the left column is related to an item across the top, a mark is placed in the intersecting cell. The numbers of relationships are added up for each row and each column. This value indicates the mapping of the two items. Zero values indicate that no relationship exists. It must be determined if one must be made. Large values imply that the item is too complex and should be simplified.
To ease the creation of traceability matrices, it is advisable to add the relationships to the source documents for both backward traceability and forward traceability. In other words, when an item is changed in one base lined document, it's easy to see what needs to be changed in the other.
Description
A table that traces the requirements to the system deliverable component for that stage that responds to the requirement.
Size and Format
For each requirement, identify the component in the current stage that responds to the requirement. The requirement may be mapped to such items as a hardware component, an application unit, or a section of a design specification.
Requirements of Traceability Matrix
Traceability matrices can be established using a variety of tools including requirements management software, databases, spreadsheets, or even with tables or hyperlinks in a word processor.
A traceability matrix is created by associating requirements with the work products that satisfy them. Tests are associated with the requirements on which they are based and the product tested to meet the requirement.

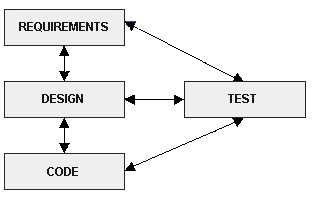

Above is a simple traceability matrix structure. There can be more things included in a traceability matrix than shown. In traceability, the relationship of driver to satisfier can be one-to-one, one-to-many, many-to-one, or many-to-many.
Traceability requires unique identifiers for each requirement and product. Numbers for products are established in a configuration management (CM) plan.
Traceability ensures completeness, that all lower level requirements come from higher level requirements, and that all higher level requirements are allocated to lower level requirements. Traceability is also used to manage change and provides the basis for test planning.
Baseline Traceability Matrix
Description
A table that documents the requirements of the system for use in subsequent stages to confirm that all requirements have been met.
Size and Format
Document each requirement to be traced. The requirement may be mapped to such things as a hardware component, an application unit, or a section of a design specification.
Building a Traceability Matrix
Use a Traceability Matrix to:
• verify and validate system specifications
• ensure that all final deliverable documents are included in the system specification, such as process models and data models
• improve the quality of a system by identifying requirements that are not addressed by configuration items during design and code reviews and by identifying extra configuration items that are not required. Examples of configuration items are software modules and hardware devices.
• provide input to change requests and future project plans when missing requirements are identified.
• provide a guide for system and acceptance test plans of what needs to be tested.
Useful Traceability Matrices
Various traceability matrices may be utilized throughout the system life cycle. Useful ones include:
• Functional specification to requirements document: It shows that each requirement (obtained from a preliminary requirements statement provided by the customer or produced in the Concept Definition stage) has been covered in an appropriate section of the functional specification.
• Top level configuration item to functional specification: For example, a top level configuration item, Workstation, may be one of the configuration items that satisfies the function Input Order Information. On the matrix, each configuration item would be written down the left hand column and each function would be written across the top.
• Low level configuration item to top level configuration item: For example, the top level configuration item, Workstation, may contain the low level configuration items Monitor, CPU, keyboard, and network interface card.
• Design specification to functional specification verifies that each function has been covered in the design.
• System test plan to functional specification ensures you have identified a test case or test scenario for each process and each requirement in the functional specification.
Although the construction and maintenance of traceability matrices may be time-consuming, they are a quick reference during verification and validation tasks.
Sample Traceability Matrix
A traceability matrix is a report from the requirements database or repository. What information the report contains depends on your need. Information requirements determine the associated information that you store with the requirements. Requirements management tools capture associated information or provide the capability to add it.
The examples show forward and backward tracing between user and system requirements. User requirement identifiers begin with "U" and system requirements with "S." Tracing S12 to its source makes it clear this requirement is erroneous: it must be eliminated, rewritten, or the traceability corrected.
For requirements tracing and resulting reports to work, the requirements must be of good quality. Requirements of poor quality transfer work to subsequent phases of the SDLC, increasing cost and schedule and creating disputes with the customer.
A variety of reports are necessary to manage requirements. Reporting needs should be determined at the start of the effort and documented in the requirements management plan.
A traceability matrix is a table that correlates any two base lined documents that require a many to many relationship to determine the completeness of the relationship. It is often used with high-level requirements (sometimes known as marketing requirements) and detailed requirements of the software product to the matching parts of high-level design, detailed design, test plan, and test cases.
Common usage is to take the identifier for each of the items of one document and place them in the left column. The identifiers for the other document are placed across the top row. When an item in the left column is related to an item across the top, a mark is placed in the intersecting cell. The numbers of relationships are added up for each row and each column. This value indicates the mapping of the two items. Zero values indicate that no relationship exists. It must be determined if one must be made. Large values imply that the item is too complex and should be simplified.
To ease the creation of traceability matrices, it is advisable to add the relationships to the source documents for both backward traceability and forward traceability. In other words, when an item is changed in one base lined document, it's easy to see what needs to be changed in the other.
Description
A table that traces the requirements to the system deliverable component for that stage that responds to the requirement.
Size and Format
For each requirement, identify the component in the current stage that responds to the requirement. The requirement may be mapped to such items as a hardware component, an application unit, or a section of a design specification.
Requirements of Traceability Matrix
Traceability matrices can be established using a variety of tools including requirements management software, databases, spreadsheets, or even with tables or hyperlinks in a word processor.
A traceability matrix is created by associating requirements with the work products that satisfy them. Tests are associated with the requirements on which they are based and the product tested to meet the requirement.
Above is a simple traceability matrix structure. There can be more things included in a traceability matrix than shown. In traceability, the relationship of driver to satisfier can be one-to-one, one-to-many, many-to-one, or many-to-many.
Traceability requires unique identifiers for each requirement and product. Numbers for products are established in a configuration management (CM) plan.
Traceability ensures completeness, that all lower level requirements come from higher level requirements, and that all higher level requirements are allocated to lower level requirements. Traceability is also used to manage change and provides the basis for test planning.
Baseline Traceability Matrix
Description
A table that documents the requirements of the system for use in subsequent stages to confirm that all requirements have been met.
Size and Format
Document each requirement to be traced. The requirement may be mapped to such things as a hardware component, an application unit, or a section of a design specification.
Building a Traceability Matrix
Use a Traceability Matrix to:
• verify and validate system specifications
• ensure that all final deliverable documents are included in the system specification, such as process models and data models
• improve the quality of a system by identifying requirements that are not addressed by configuration items during design and code reviews and by identifying extra configuration items that are not required. Examples of configuration items are software modules and hardware devices.
• provide input to change requests and future project plans when missing requirements are identified.
• provide a guide for system and acceptance test plans of what needs to be tested.
Useful Traceability Matrices
Various traceability matrices may be utilized throughout the system life cycle. Useful ones include:
• Functional specification to requirements document: It shows that each requirement (obtained from a preliminary requirements statement provided by the customer or produced in the Concept Definition stage) has been covered in an appropriate section of the functional specification.
• Top level configuration item to functional specification: For example, a top level configuration item, Workstation, may be one of the configuration items that satisfies the function Input Order Information. On the matrix, each configuration item would be written down the left hand column and each function would be written across the top.
• Low level configuration item to top level configuration item: For example, the top level configuration item, Workstation, may contain the low level configuration items Monitor, CPU, keyboard, and network interface card.
• Design specification to functional specification verifies that each function has been covered in the design.
• System test plan to functional specification ensures you have identified a test case or test scenario for each process and each requirement in the functional specification.
Although the construction and maintenance of traceability matrices may be time-consuming, they are a quick reference during verification and validation tasks.
Sample Traceability Matrix
A traceability matrix is a report from the requirements database or repository. What information the report contains depends on your need. Information requirements determine the associated information that you store with the requirements. Requirements management tools capture associated information or provide the capability to add it.
The examples show forward and backward tracing between user and system requirements. User requirement identifiers begin with "U" and system requirements with "S." Tracing S12 to its source makes it clear this requirement is erroneous: it must be eliminated, rewritten, or the traceability corrected.
For requirements tracing and resulting reports to work, the requirements must be of good quality. Requirements of poor quality transfer work to subsequent phases of the SDLC, increasing cost and schedule and creating disputes with the customer.
A variety of reports are necessary to manage requirements. Reporting needs should be determined at the start of the effort and documented in the requirements management plan.
Wednesday, September 10, 2008
IEEE 829: Standard For Software Test Documentation
IEEE 829-1998, also known as the 829 Standard for Software Test Documentation, is an IEEE standard that specifies the form of a set of documents for use in eight defined stages of software testing, each stage potentially producing its own separate type of document. The standard specifies the format of these documents but does not stipulate whether they all must be produced, nor does it include any criteria regarding adequate content for these documents. These are a matter of judgments outside the purview of the standard. The documents are:
• Test Plan: a management planning document that shows:
• How the testing will be done (including SUT configurations).
• Who will do it
• What will be tested
• How long it will take (although this may vary, depending upon resource availability).
• What the test coverage will be, i.e. what quality level is required
• Test Design Specification: detailing test conditions and the expected results as well as test pass criteria.
• Test Case Specification: specifying the test data for use in running the test conditions identified in the Test Design Specification
• Test Procedure Specification: detailing how to run each test, including any set-up preconditions and the steps that need to be followed
• Test Item Transmittal Report: reporting on when tested software components have progressed from one stage of testing to the next
• Test Log: recording which tests cases were run, who ran them, in what order, and whether each test passed or failed
• Test Incident Report: detailing, for any test that failed, the actual versus expected result, and other information intended to throw light on why a test has failed. This document is deliberately named as an incident report, and not a fault report. The reason is that a discrepancy between expected and actual results can occur for a number of reasons other than a fault in the system. These include the expected results being wrong, the test being run wrongly, or inconsistency in the requirements meaning that more than one interpretation could be made. The report consists of all details of the incident such as actual and expected results, when it failed, and any supporting evidence that will help in its resolution. The report will also include, if possible, an assessment of the impact upon testing of an incident.
• Test Summary Report: A management report providing any important information uncovered by the tests accomplished, and including assessments of the quality of the testing effort, the quality of the software system under test, and statistics derived from Incident Reports. The report also records what testing was done and how long it took, in order to improve any future test planning. This final document is used to indicate whether the software system under test is fit for purpose according to whether or not it has met acceptance criteria defined by project stakeholders.
Relationship with other standards
Other standards that may be referred to when documenting according to IEEE 829 include:
• IEEE 1008, a standard for unit testing
• IEEE 1012, a standard for Software Verification and Validation
• IEEE 1028, a standard for software inspections
• IEEE 1044, a standard for the classification of software anomalies
• IEEE 1044-1, a guide to the classification of software anomalies
• IEEE 1233, a guide for developing system requirements specifications
• IEEE 730, a standard for software quality assurance plans
• IEEE 1061, a standard for software quality metrics and methodology
• IEEE 12207, a standard for software life cycle processes and life cycle data
• BSS 7925-1, a vocabulary of terms used in software testing
• BSS 7925-2, a standard for software component testing
Use of IEEE 829
The standard forms part of the training syllabus of the ISEB Foundation and Practitioner Certificates in Software Testing promoted by the British Computer Society. ISTQB, following the formation of its own syllabus based on ISEB's and Germany's ASQF syllabi, also adopted IEEE 829 as the reference standard for software testing documentation.
• Test Plan: a management planning document that shows:
• How the testing will be done (including SUT configurations).
• Who will do it
• What will be tested
• How long it will take (although this may vary, depending upon resource availability).
• What the test coverage will be, i.e. what quality level is required
• Test Design Specification: detailing test conditions and the expected results as well as test pass criteria.
• Test Case Specification: specifying the test data for use in running the test conditions identified in the Test Design Specification
• Test Procedure Specification: detailing how to run each test, including any set-up preconditions and the steps that need to be followed
• Test Item Transmittal Report: reporting on when tested software components have progressed from one stage of testing to the next
• Test Log: recording which tests cases were run, who ran them, in what order, and whether each test passed or failed
• Test Incident Report: detailing, for any test that failed, the actual versus expected result, and other information intended to throw light on why a test has failed. This document is deliberately named as an incident report, and not a fault report. The reason is that a discrepancy between expected and actual results can occur for a number of reasons other than a fault in the system. These include the expected results being wrong, the test being run wrongly, or inconsistency in the requirements meaning that more than one interpretation could be made. The report consists of all details of the incident such as actual and expected results, when it failed, and any supporting evidence that will help in its resolution. The report will also include, if possible, an assessment of the impact upon testing of an incident.
• Test Summary Report: A management report providing any important information uncovered by the tests accomplished, and including assessments of the quality of the testing effort, the quality of the software system under test, and statistics derived from Incident Reports. The report also records what testing was done and how long it took, in order to improve any future test planning. This final document is used to indicate whether the software system under test is fit for purpose according to whether or not it has met acceptance criteria defined by project stakeholders.
Relationship with other standards
Other standards that may be referred to when documenting according to IEEE 829 include:
• IEEE 1008, a standard for unit testing
• IEEE 1012, a standard for Software Verification and Validation
• IEEE 1028, a standard for software inspections
• IEEE 1044, a standard for the classification of software anomalies
• IEEE 1044-1, a guide to the classification of software anomalies
• IEEE 1233, a guide for developing system requirements specifications
• IEEE 730, a standard for software quality assurance plans
• IEEE 1061, a standard for software quality metrics and methodology
• IEEE 12207, a standard for software life cycle processes and life cycle data
• BSS 7925-1, a vocabulary of terms used in software testing
• BSS 7925-2, a standard for software component testing
Use of IEEE 829
The standard forms part of the training syllabus of the ISEB Foundation and Practitioner Certificates in Software Testing promoted by the British Computer Society. ISTQB, following the formation of its own syllabus based on ISEB's and Germany's ASQF syllabi, also adopted IEEE 829 as the reference standard for software testing documentation.
